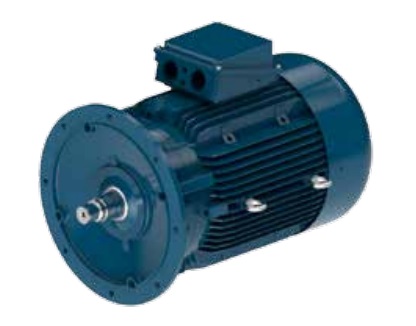

AKH 静态转矩电机（Static-torque motors）
AKH 静态转矩电机（Static-torque motors）
Specifications
Shaft height: 80 to 200 mm
Power: 1,4 bis 100 Nm
Speed range: depending on motor design and number of poles
Duty cycle: S1
Efficiency classes: IE 2 / IE 3
Cooling: IC 411 (self-ventilated)
Cooling: IC 416 (force-ventilated)
Voltage: 400 V / 50 Hz
Insulation class: F
Mounting: IM B3 / B5
Degree of protection: IP 54
Vibration severity grade: A
Ambient temperature: -20 to 40 °C
Installation altitude: up to 1.000 m
Options of electrical design
Nominal torque for short term operation or intermittent operation
Special voltages and -frequencies
Insulation class H
Higher ambient temperature and installation altitude
Winding temperature monitoring by thermo switch, PTC resistor or Pt100
Anti-condensation heating
